  • Solis-50K-US-F-LSW, 50kW, 1000Vdc, Three Phase

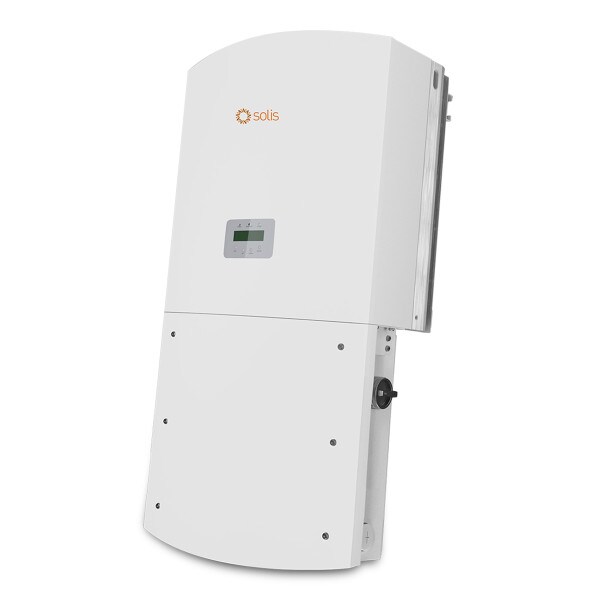

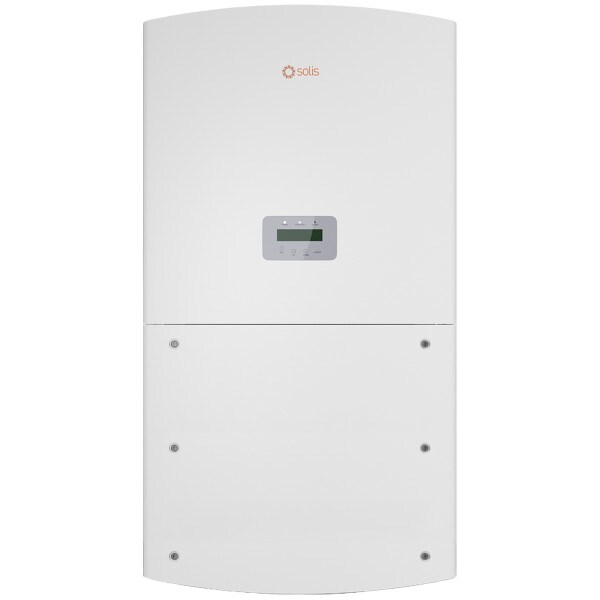

Solis-50K-US-F-LSW, 50kW, 1000Vdc, Three Phase

SKU: SLS-2005

You can add this item to the order, but please note that it is currently out of stock. Your Sales Rep will reach out with the estimated ship dates

Product Details

Solis-50K-US-F-LSW & Solis-(50-66)K-LWB-SPRT 50kW 3ph 1000Vdc; 480Vac 4 MPPT w/AFCI & SunSpec TX

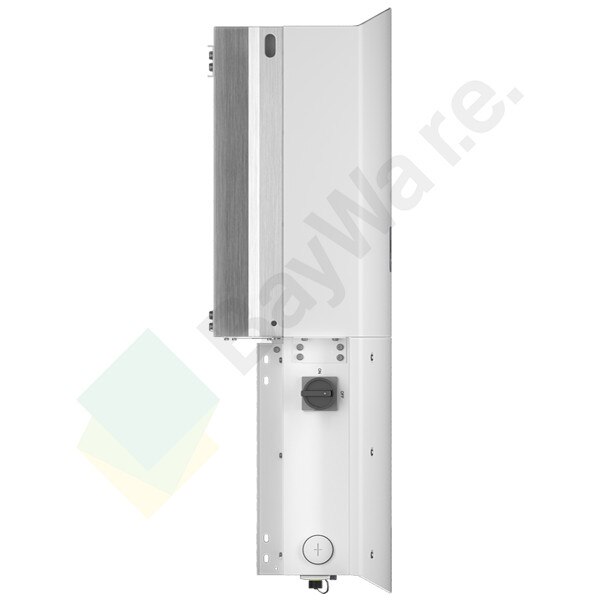

The Solis-(50-66)K three phase series string inverters are suitable for commercial and light industrial PV plants. These units have a compact and lightweight design making them an easy two-person installation. The ultra-low THDi of ˂2% and filter features add multiple layers of protection for the grid.  Solis 50-66K inverters can be parallel-connected up to 6 MW. For easy installation and O&M, these units have a separable wiring box allowing the EPC to install the wiring box ahead of time and add the inverter at a later time. To finish it off these units have multiple options of communications with free Solis APPs and PC monitoring on SolisCloud.

Product Features
  • Wide voltage range and low startup voltage
  • 10 years standard warranty with extension options
  • Transformer-less three phase design with 480Vac output
  • Web-based data monitoring with downloadable Solis Mobile App
  • Max. efficiency 98.8% (CEC efficiency 98.4%) with ultra-low start up voltage
  • Compact and lightweight design inside a corrosion-resistant NEMA 4X enclosure
  • Designed for all commercial, industrial, and utility-scale applications Industry-leading 4 MPPT designs with fast (<5 sec.) MPPT response times
  • RS-485 Modbus communication protocol with Wi-Fi interface
