YC1000-3-480

SKU: APS-1004

Product Details

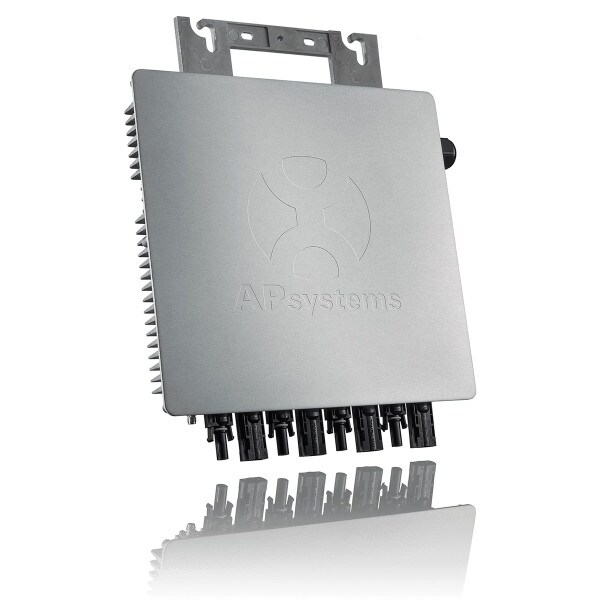

The YC1000 is the industry‚Äôs first true 3-phase (phase-balanced & phase-monitored) solar microinverter, handling 277Y/480V grid voltages with 900 watts maximum output, ZigBee communication and an integrated ground. Up to 11 units (44 modules total, 60- or 72-cell) can be linked in a single 15A circuit. This groundbreaking technology is only available from APsystems.

Manufacturer Part Number: YC1000
Max. Continuous Power Output: 1130W
Output Voltage Range: 277/480V
Maximum Units per Branch: 9units per 15A x 3 AC breaker or 12units per 20A x 3 AC breaker
AC Bus Maximum Current: 20A (14AWG)
Connector Type: MC4
Peak Efficiency: 95.5%
Compliance: Meets NEC2014/2017 690.11, 690.12
Shipping weight: 7.7 lb
Shipping dimensions: 10.2 x 9.5 x 1.4 in
Box Qty: 5

Product Documents

Downloads

Sorry, there is no installation manual currently available, please contact your rep for more information.
